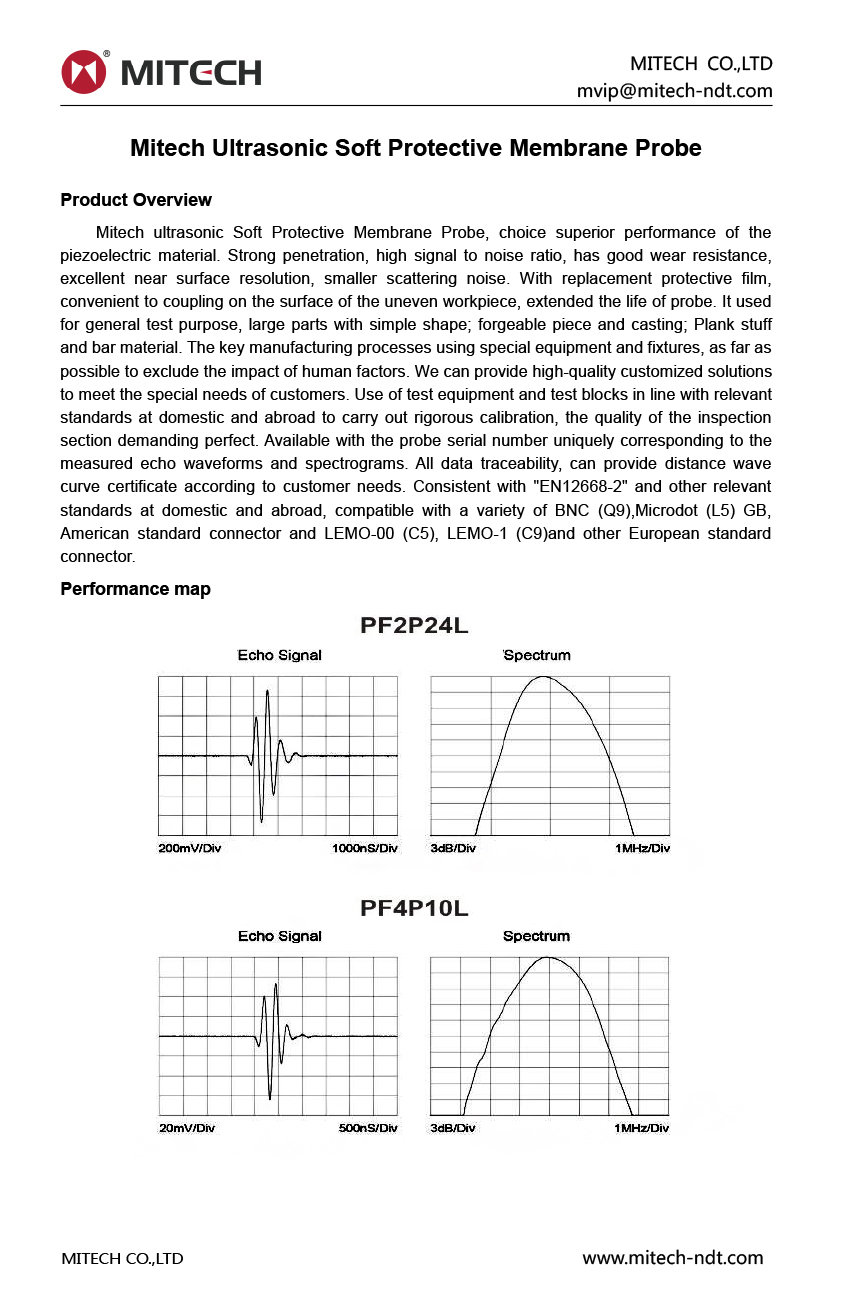

Mitech ultrasonic soft protective membrane probe, choice superior performance of the piezoelectric material. Strong penetration, high signal to noise ratio, has good wear resistance, excellent near surface resolution, smaller scattering noise. With replacement protective film, convenient to coupling on the surface of the uneven workpiece, extended the life of probe. It used for general test purpose, large parts with simple shape; forgeable piece and casting; Plank stuff and bar material. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors. We can provide high-quality customized solutions to meet the special needs of customers. Use of test equipment and test blocks in line with relevant standards at domestic and abroad to carry out rigorous calibration, the quality of the inspection section demanding perfect. Available with the probe serial number uniquely corresponding to the measured echo waveforms and spectrograms. All data traceability, can provide distance wave curve certificate according to customer needs. Consistent with "EN12668-2" and other relevant standards at domestic and abroad, compatible with a variety of BNC (Q9),Microdot (L5) GB, American standard connector and LEMO-00 (C5), LEMO-1 (C9)and other European standard connector.

(1) General test purpose, large parts with simple shape.

(2) Forgeable piece and casting.

(3) Plank stuff and bar material.

With replacement protective film, convenient to coupling on the surface of the uneven workpiece, extended the life of     probe.

Most of matching  connector is LEMO-00 (c5)、LEMO-1 (c9), connectors (direction is lateral).
