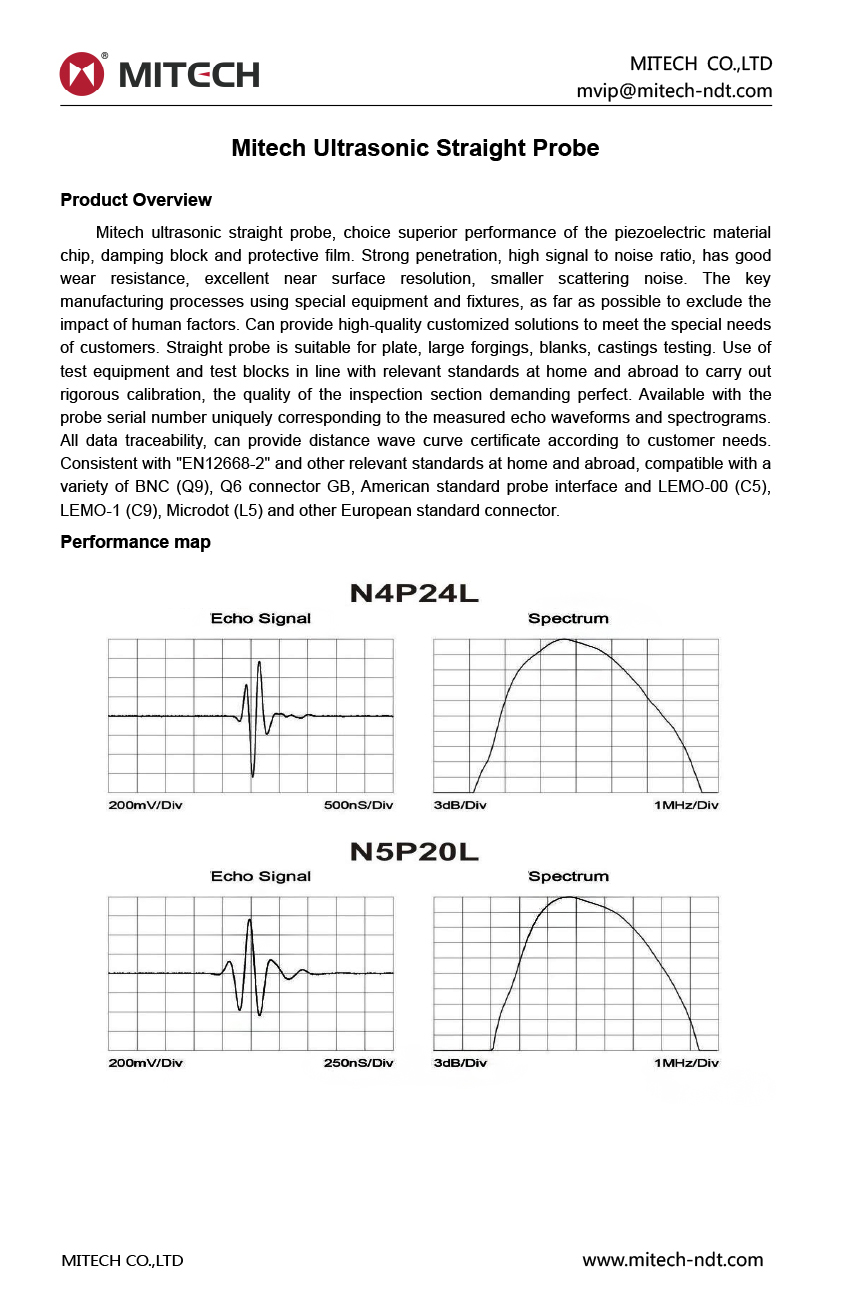

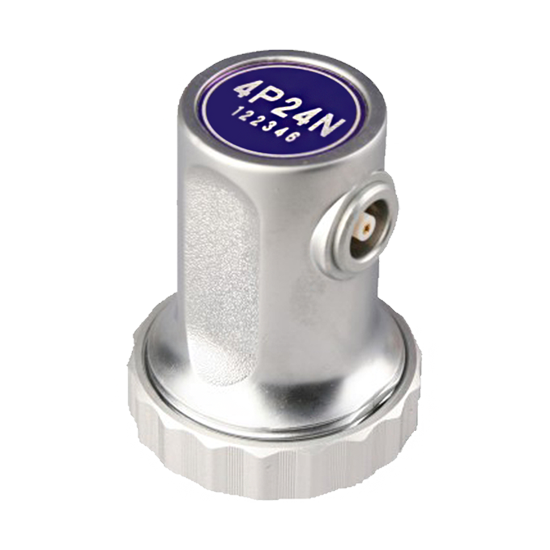

Mitech ultrasonic straight probe, choice superior performance of the piezoelectric material chip, damping block and protective film. Strong penetration, high signal to noise ratio, has good wear resistance, excellent near surface resolution, smaller scattering noise. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors. Can provide high-quality customized solutions to meet the special needs of customers. Straight probe is suitable for plate, large forgings, blanks, castings testing. Use of test equipment and test blocks in line with relevant standards at home and abroad to carry out rigorous calibration, the quality of the inspection section demanding perfect. Available with the probe serial number uniquely corresponding to the measured echo waveforms and spectrograms. All data traceability, can provide distance wave curve certificate according to customer needs. Consistent with "EN12668-2" and other relevant standards at home and abroad, compatible with a variety of BNC (Q9), Q6 connector GB, American standard probe interface and LEMO-00 (C5), LEMO-1 (C9), Microdot (L5) and other European standard connector.

 (1) General application, metal parts with simple structure.

 (2) Plank stuff, large forgings, blank, castings detection.

(1) Probes bottom with good abrasion resistance.

(2) Probes interface for national standard and american standard is mostly BNC (Q9), Q6 connector (sidepiece or top direction).

(3) Probes interface for europe standard is mostly LEMO-00(C5)、LEMO-1(C9)、microdot(L5) connector(sidepiece or top direction ).
